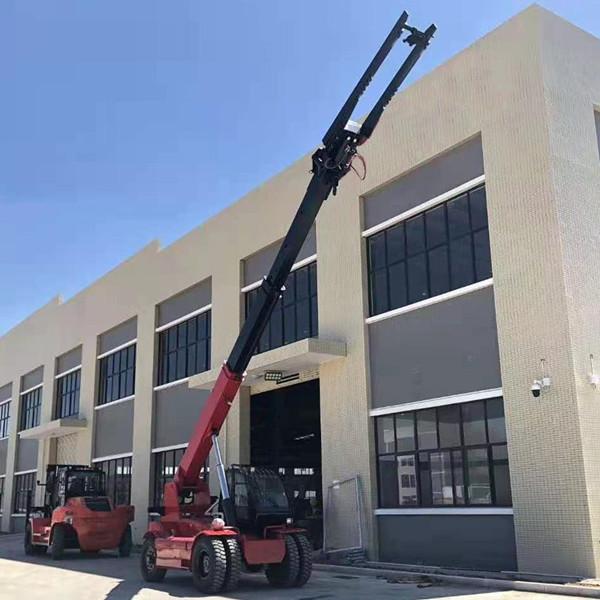

10Ton Telescopic Crane Loader Hydraulic Telescopic Fork Mini Telehandler Telescopic HanCE Good Price WEA110
1. telescopic Crane Loader WEA110,This product is equipped with famous brand engine of strong and reliable power and high technology axles and transmission of stable drive. The full-hydraulic wet brake is applied to ensure driving safety. The four-section telescopic boom structure features flexible operations, accurate forklifting, and automatic leveling, with the maximum lifting height up to 16.7m. It's a multifunctional high-efficiency small-sized construction machinery product.
2. Using well-known brand diesel engine, strong-power, energy saving and environment protection,to meet the requirements of efficient operations
3. Double turbo hydraulic torque converter,stepless speed change. Single-lever control transmission system,with 2 speeds for forward and reverse gears, easier to operate.
4. Use dual-pump combined hydraulic system, greatly reduce the fuel consumption and energy consumption
5. Parts are the ocalization,standardization,cost-effective,easy to purchzase and daily maintenance.
WEA-110 Telescopic Crane loader |
| Item |
Parameter |
Remark |
| Rated load, |
≤11000kg |
|
| Operating weight |
13000kg |
|
| Main hook max.lifting height, |
7605mm |
( from
main hook to the
ground) |
Max.lifting height with full extended
boom, |
10300mm |
(front hook) |
| Wheel base, |
2988mm |
|
| Front wheel tread, |
1638mm |
|
| Rear wheel tread, |
1845mm |
|
| Min.ground clearance, |
310mm |
|
| Overall length, |
5288mm |
without hook |
| Overall width, |
2350mm |
|
| Overall height, |
2715mm |
|
| Overall height of cab, |
2400mm |
|
| Rear overhang length, |
1055mm |
|
| Main hook max,horizontalreach, |
4800mm |
(Horizontal) |
| Max.Horizontal reach with full extended boom,mm |
7900mm |
(Horizontal) |
| Tipping angle of hook,up/down |
22°/24° |
|
| Tipping angle of big arm,up/down |
-14°/43° |
|
| Min.turning radius, |
6800mm |
|
| Max.gradeabilliy, |
≥20° |
|
| Max.travelling speed, |
25Km/h |
|
| Front wheel |
11.00-20 |
|
| Rear wheel |
9.00-20 |
|
